Shutter frames and shutter mounting options

Mounting and framing options for Plantation Shutters explained Shutter frames and shutter mounting

When it comes to shutters, our expert designers will be able to give you the best options for your windows or doors. The below will give you a very good idea of the usual options for shutter frames and shutter mounting options. For more information please call 0345 894 0700 or arrange a home visit below.

Inside Mount

Shutters are installed on the inside of the recess opening as shown in diagrams A, B and C. This requires sufficient depth for slat clearance (the bigger the slat, the bigger the depth required). Clearance for handles must also be taken into account. Shutters will fold back against the inside of the recess if mounted as per A and B. Although they may still protrude further than the recess, depending on recess depth and size of panels. If mounted as per option C, shutters will fold back against the walls on either side of the window.

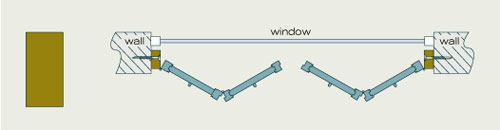

Plain Batten – A

mounting plain batten

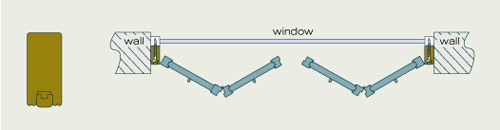

Moulded Frame – B

Mounting moulded

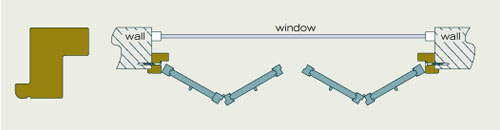

Trim Z Frame – C

Mounting trim frame

Outside Mount

Outside mounting is also an option. Shutters are fixed onto the wall outside of the recess opening as shown in diagrams D, E and F.



Plain Batten – D

Mounting moulded

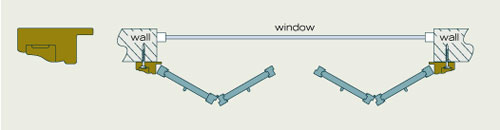

Art Deco Frame – E

Mounting art deco

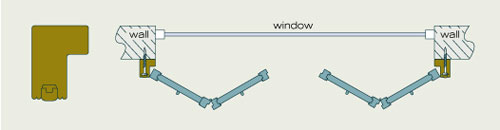

L Frame – F

Mounting L frame
